VIVIX-S 2530VW

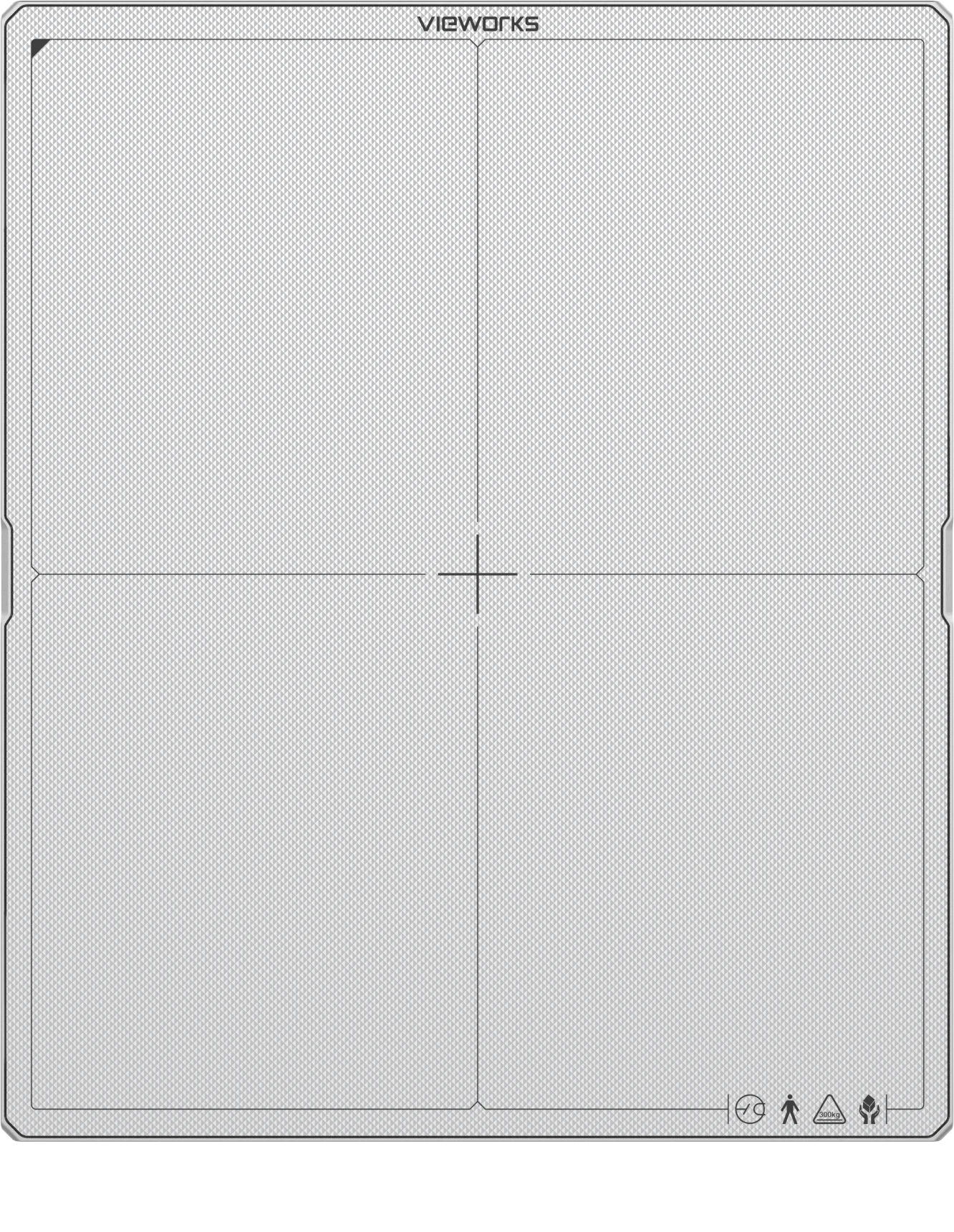

The VIVIX-S 2530VW (FXRD-2530VAW) is the compact 10″ x 12″ detector in Vieworks’ VIVIX-S V Series. At 4.3 lbs with a single-battery design, it suits extremity, small patient and mobile imaging where a full-size panel would get in the way. It connects over Wi-Fi or Gigabit Ethernet and carries an IP67 rating against dust and water.

Key Features

• Compact 10″ x 12″ Imaging Area – A 25.4 x 31.7 cm active area with a 2048 x 2560 pixel matrix handles extremities, small patients and positioning in tight spaces.
• Fine Detail Capture – A CsI scintillator and 124 µm pixel pitch deliver 4.0 lp/mm spatial resolution with 16-bit grayscale.
• Fast Image Acquisition – Images appear in 3 seconds, with a recommended cycle time of 4 seconds between exposures.
• Wired or Wireless Connection – Transfer images over IEEE 802.11n/ac Wi-Fi or Gigabit Ethernet to suit your room setup.
• Flexible Generator Integration – Run in DR Trigger Mode or AED Mode, so the detector can detect exposures automatically without a direct generator connection.
• Single-Battery Power – One 3,400 mAh lithium-ion battery provides 8 hours of standby and up to 1,500 images at a 15-second cycle.
• Lightweight and Sealed – Measures 11.3 x 13.8 x 0.6 inches and weighs 4.3 lbs (1.95 kg), with IP67 protection against dust and water.

Specifications

• Model Number: FXRD-2530VAW
• Imaging Area: 10″ x 12″ (25.4 x 31.7 cm)
• Pixel Pitch: 124 µm
• Spatial Resolution: 4.0 lp/mm
• Pixel Matrix: 2048 x 2560
• Dimensions: 11.3 x 13.8 x 0.6 in
• Weight: 4.3 lbs (1.95 kg)
• Battery: 1 x 3,400 mAh, 8 h standby, up to 1,500 images
• Ingress Protection: IP67
